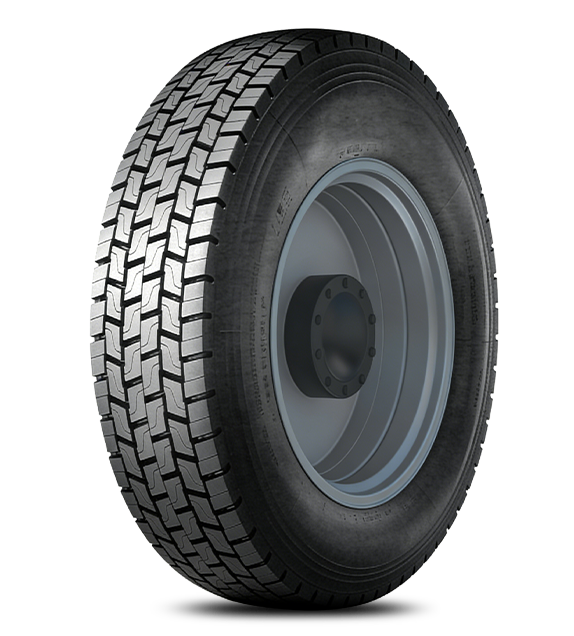

DR538
- Drive wheel, for Regional road using
- Suitable for the medium and long distance on the good road surface
- With excellent driving power and anti-wear character
- Longer mileage and outstanding heat dissipation
SIZE LIST
| Size | PR | LI/SI | Standard Rim | SW (mm) | OD (mm) | TD (mm) | Max Load | Pressure | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Kg | LBS | (kpa) | PSI | |||||||
| 11R22.5 | 16 | 148/145M | 8.25 | 279 | 1054 | 21.0 | 3150/2900 | 6944/6393 | 830 | 120 |
| 12R22.5 | 18 | 152/149L | 9.00 | 300 | 1085 | 22.0 | 3550/3250 | 7830/7160 | 930 | 135 |
| 295/80R22.5 | 18 | 152/149M | 9.00 | 298 | 1044 | 20.0 | 3550/3250 | 7830/7160 | 900 | 130 |
